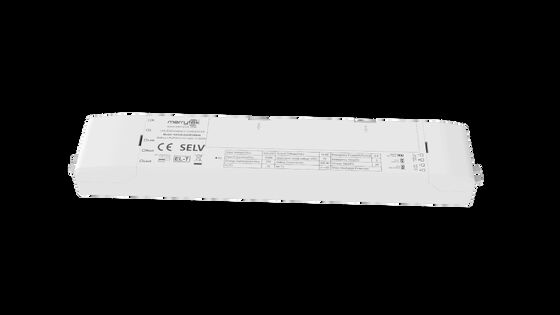

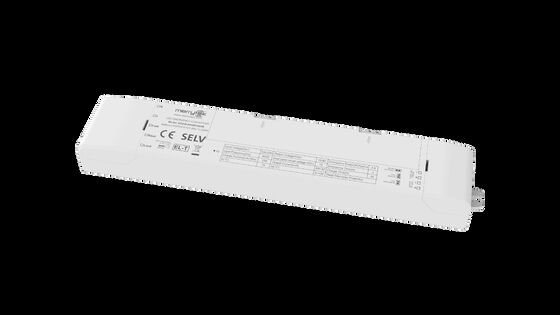

2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty

  • 2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty
  • 2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty
Lugar de origen Porcelana
Nombre de la marca Merrytek
Certificación CE, UKCA, UN38.3, MSDS
Número de modelo KE036-02AM180HB1
Cantidad de orden mínima 100
Precio Negociable
Detalles de empaquetado Embalado en bolsas de burbujas en primer lugar, y luego reforzado con cartón para el embalaje exteri
Tiempo de entrega 1, muestra y pedido pequeño: dentro de los 5 días hábiles después de recibir su pago. 2, Orden a gra
Condiciones de pago T/t u unión occidental
Capacidad de la fuente 10,000pcs por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

- ¿ Qué es eso?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Voltaje de entrada nominal El valor de las emisiones de dióxido de carbono se calculará en función de las emisiones de dióxido Potencia de emergencia 2W ((Puede ser personalizado)
Hora de emergencia 180 min (puede ser personalizado) Garantía 5 años
Voltado de salida de carga 50-220 Vcc Temperatura de trabajo 0 ℃ ~ 50 ℃
Clasificación IP IP20 Tipo de batería Se trata de un sistema de transmisión de energía.
Resaltar

2W LED emergency driver

,

self test emergency pack

,

5 year warranty emergency driver
Deja un mensaje
Descripción de producto
2W Standard and Self Test Emergency Packs
Constant power output LED emergency power supply with a wide output voltage range, featuring LifePO4 battery technology with a 5-year warranty.
Product Features
  • Constant power output LED emergency power supply with wide output voltage range
  • Input relay switching
  • High safety, high performance, long life LifePO4 battery
  • Integrated battery management system
  • Standard and self-test emergency packs
Technical Parameters
Charge Part
Model No. KE036-02AM180HB1
Rated input voltage 220-240Vac 50Hz/60Hz
Rated input current 0.06A Max. @230Vac
Input inrush current 10A(Twidth=100us 50% Ipeak) @230Vac (Cold start at full load)
Power factor ≥0.5@230Vac
Input power <4W@230Vac
Battery charging current 250mA Max.
Battery charging time 24 hours Max.
Emergency Part
Operating mode Emergency mode
Load type LED
Emergency power 2W
Emergency time 3 hours
Load output current 40-9mA
Load output voltage 50-220Vdc
Battery
LifePO4 (The battery capacity meets the emergency time at 25℃) 6.4V 1.8Ah
Battery warranty Warranty 5 years @25℃
Product Dimensions
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 0
Unit: mm
Wiring Diagrams
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 1
Basic wiring diagram
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 2
Fig A: With LED driver and LED module
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 3
Fig B: With LED module
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 4
Fig C: Loop in & out with LED module
Operation Instructions
Manual Test Mode
  • Before installation, set Pin short: Manual Test
  • Connect the wire according to the wiring diagram
  • L, N power on, Switch on S1. Then the load lamp turns on, the emergency driver indicator light turns green, emergency power supply is normal charging. Turn off Switch S1; the load lamp turns off
  • Emergency Simulation: Switch on, the load lamp turns on, press the switch (TEST SWITCH), then switch to emergency mode, the indicator light of the emergency driver will be extinguished. Release the switch (TEST SWITCH), then the lamp is powered by LED driver, the indicator light will turn on
Automatic Test Mode
  • Before installation, set Pin open: Automatic Test
  • Connect the wire according to the wiring diagram. Remove the test switch on the LED Emergency Driver
  • L, N power on, start the clock, and perform a periodic self-test. To replace the battery, turn off the power supply, and re-time
Battery Application Notice
  • The battery should be recharged and discharged semiannually in normal use conditions
  • Do not connect to the circuit when the battery is not in use to prevent over-discharge of the battery due to self-consumption of the circuit board
  • Please keep the battery away from the heat source when installing and using, and only be allowed to be used in a certain working temperature range
  • The battery should be stored in a cool and dry environment
  • After long-term storage, the battery is cycled every 6 months as required
  • AC power is off, and the clock lasts for 7 days. Power on and re-time. To replace the battery, turn off the power supply, and re-time
All parameters are tested on the input voltage 230VAC, environment temperature 25℃, unless otherwise specified.
