5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable
| Lugar de origen | Porcelana |
|---|---|
| Nombre de la marca | Merrytek |
| Certificación | CE, UKCA, UN38.3, MSDS |
| Número de modelo | KE023-05AM180HE |
| Cantidad de orden mínima | 100 |
| Precio | Negociable |
| Detalles de empaquetado | Embalado en bolsas de burbujas en primer lugar, y luego reforzado con cartón para el embalaje exteri |
| Tiempo de entrega | 1, muestra y pedido pequeño: dentro de los 5 días hábiles después de recibir su pago. 2, Orden a gra |
| Condiciones de pago | T/t u unión occidental |
| Capacidad de la fuente | 10,000pcs por mes |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
- ¿ Qué es eso?: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Voltaje de entrada nominal | El valor de las emisiones de dióxido de carbono se calculará en función de las emisiones de dióxido | Potencia de emergencia | 5W |
|---|---|---|---|
| Hora de emergencia | 3 horas | Garantía | 5 años (incluida la batería) |
| Voltado de salida de carga | 20 a 60 Vdc | Temperatura de trabajo | 0 ℃ ~ 50 ℃ |
| Clasificación IP | IP20 | Tipo de batería | Se trata de un sistema de transmisión de datos. |
| Resaltar | 5W LED emergency driver,20-60Vdc emergency pack,self test emergency driver |
||
Descripción de producto

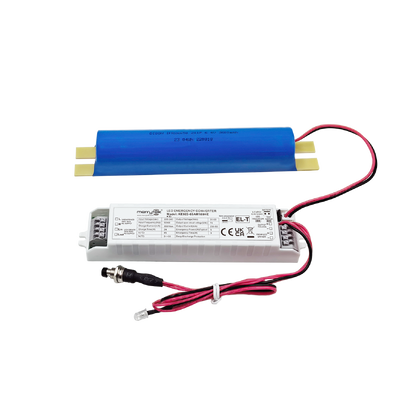

5W 3-Hour Duration 20-60VDC Non-Maintained Emergency Pack with Self Test & Manual Test Switchable
Product Overview
Constant power output LED emergency power supply with a wide output voltage range, featuring input relay switching and comprehensive protection functions.
Key Features
- Constant power output with wide voltage range (20-60VDC)
- Input relay switching technology
- Multiple protection functions: battery overcharge, over-discharge, and output short circuit protection
- Switchable between Self Test and Manual Test modes
Technical Specifications
Charge Parameters
| Parameter | KE023-05AM180HE |
|---|---|
| Rated input voltage | 220-240Vac 50Hz /60Hz |
| Rated input current | 0.06A Max. @230Vac |
| Input inrush current | 10A(twidth=100uS 50% Ipeak )@230Vac(Cold start at full load) |
| Power factor | ≥0.5@230Vac |
| Input power | <4W |
| Battery charging current (Max) | 350mA |
| Battery charging time | 24 hours Max. |
Emergency Parameters
| Parameter | Specification |
|---|---|
| Operating mode | Emergency mode |
| Load type | LED |
| Emergency power | 5W |
| Emergency time | 3 hour |
| Load output current | 250-80mA |
| Load output voltage | 20-60VDC |
Battery Specifications
| Li-ion battery | 6.4V 3600mAh (capacity meets emergency time at 25℃) |
|---|---|
| Battery warranty | 5 years |
Driver Requirements
| Surge current | 8A |
|---|---|
| Input current | 3A Max. |
| Output current | 2A |
LED Indicator Status
| Status | Reason | Charge Indicator |
|---|---|---|
| Battery is fully charged and operational | Standard daily use | Solid green |
| Battery Charging | Initial Charge/Battery Top Up | Flashing green 1 sec on 1 sec off |
| Auto Test 3 Hours (every 12 months) | Periodic self-test | Flashing Green 3 sec on 1 sec off |
| Auto Test 5 Min (every 30 days) | Periodic self-test | Flashing Green 3 sec on 3 sec off |
| Duration test fault | Failed the 3-hour annual test | Flashing Red 0.5 sec on 0.5 sec off |
| LED fault | Not plugged in or damaged/faulty | Flashing Red 2 sec on - 2 sec off |
| Battery Disconnected/Faulty | Not plugged in or damaged/faulty | Solid red |
Protection Features
- Battery over-charge/deep discharge protection: Yes
- Output over-voltage protection: Yes
- Output overload protection: Yes
- Output short circuit protection: Yes
Operating Environment
| Operating temperature/humidity | 0℃…+50℃ Humidity; 20%-75%(without condensation) |
| Storage temperature/humidity | -5℃-35℃ |
| Case Max. Temp(Tc) | 75℃ |
Safety & EMC Compliance
| Withstand voltage | 3000Vac 5mA 60s (Input "L N" - output "SEC+ SEC-") |
| Safety standard | EN61347-1, 60598-2-22, 61347-2-7, 62034 |
| EMC standard | EN55015, EN61000-3-2, EN61000-3-3 |
| Battery standard | UN38.3 |
| Environmental protection | Compliant with RoHS |
| Certification | CE |
Physical Specifications
| Input/output terminal specification | Press terminal, wire diameter: 0.5-0.75mm² |
| IP rating | IP20 |
| Type of protection | Class 2 |
| Installation type | Built-in installation |
| Installation dimension | 146×30×22.5mm |
| Weight: Emergency Power Supply | 80±5g |
| Lifespan | 5 Year @Ta |
All parameters are tested at an input voltage of 230VAC, an environment temperature of 25℃, unless otherwise specified.

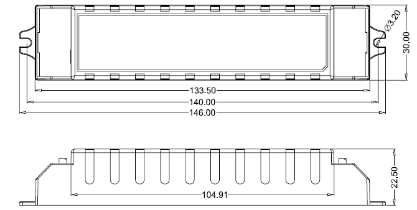

Product Dimensions
Battery Dimensions
Fig. A
Fig. B
Fig. C
Fig. D
Wiring Diagrams
Fig. A
Alternative Wiring
Fig. B
Fig. C
Fig. D
Test Mode Selection
Wire Preparation
- Solid or Stranded wire type: 0.5 - 0.75mm²
- To access or remove wires from terminals, use a screwdriver to push the buttons down
Manual Test Operation Instructions
- Before installation, set Pin short: Manual Test
- Connect the wire according to the wiring diagram
- L, N power on, Switch on S1. Then the load lamp turns on, the emergency driver indicator light turns green, emergency power supply will be normally charging. Turn off Switch S1, and the load lamp turns off
- Emergency Simulation: Switch on, the load lamp turns on, press the switch (TEST SWITCH), then switch to emergency mode, the indicator light of the emergency driver will be extinguished. Release the switch (TEST SWITCH), then the lamp is powered by the LED driver, and the indicator light will turn on
Automatic Test Operation Instructions
- Before installation, set Pin open: Automatic Test
- Connect the wire according to the wiring diagram
- L, N power on, start the clock, and periodic self-test. To replace the battery, turn off the power supply, and re-time
Battery Application Notice
- The battery should be recharged and discharged semiannually in normal use conditions
- Do not connect to the circuit when the battery is not used, to prevent over-discharging of the battery due to self-consumption of the circuit board
- Please keep the battery away from the heat source when installing and using it, and only allow it in a certain working temperature range
- The battery should be stored in a cool and dry environment
- After a long time of storage, the battery is cycled every 12 months as required
- AC power is off, and the clock lasts for 7 days. Power on and re-time. To replace the battery, turn off the power supply, and re-time
