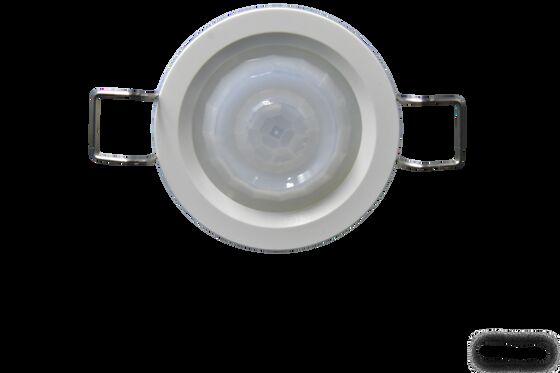

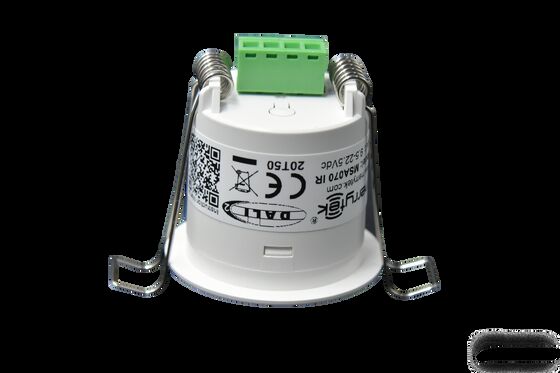

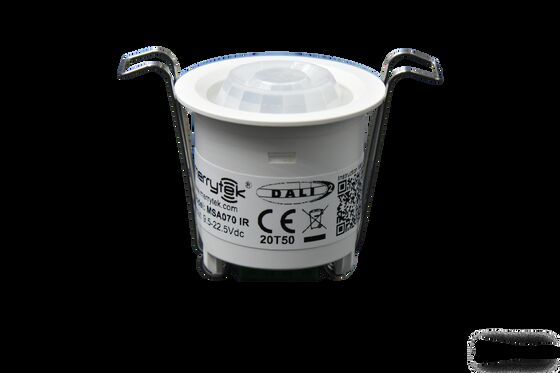

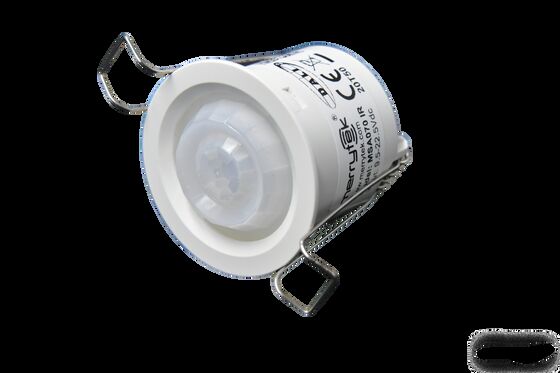

35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode

  • 35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode
  • 35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode
  • 35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode
  • 35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode
Lugar de origen Porcelana
Nombre de la marca Merrytek
Certificación CE
Número de modelo MSA070D IR
Cantidad de orden mínima 100 piezas
Precio Negociable
Detalles de empaquetado Caja blanca + etiquetas de caja blanca + cartón de cartón
Tiempo de entrega 1, muestra y pedido pequeño: dentro de los 5 días hábiles después de recibir su pago. 2, Orden a gra
Condiciones de pago T/T
Capacidad de la fuente 10,000pcs por mes
Datos del producto
Voltaje de entrada 12-24VDC Corriente de trabajo 20mA máximo.
Consumo de energía ≤0,5W Función salida de contacto seco/libre de voltaje
Disponible Detección de movimiento, sensor de luz diurna Altura de montaje los 2.5-4m
Instalación Las demás: tamaño de corte Φ35mm
Resaltar

35mm mini PIR motion sensor

,

12-24Vdc dry contact motion detector

,

compact PIR sensor with dry contact
Deja un mensaje
Descripción de producto
35mm Cut-Out Mini Motion Detector

Compact 35mm cut-out mini motion detector with 12-24V DC operating voltage and dry contact output mode, designed for discreet ceiling installation.

Key Features
  • PIR infrared pyroelectric sensing technology
  • Flat lens design for aesthetic appearance
  • Accurate NO/NC dry contact output
  • Ambient light detection capability
  • Remote control setting of sensing range and delay time
  • Maximum motion detection range: 8-10 meters diameter
  • Ideal for hallway and toilet motion detection
  • Concealed, recessed installation
  • Ultra-small size blends seamlessly with ceiling
Technical Specifications
Input/Output
Input Voltage 12-24V DC
Rated Voltage 12/24V DC
Working Current 20mA max
Power Consumption ≤0.5W @12/24V DC
Output Signal NO/NC dry contact (Factory setting: NO dry contact)
Sensor Parameters
Function PIR motion detection + daylight sensor
Detection Area MH18 remote setting: 00%/75%/50%/25%
Hold Time MH18 remote setting: 2s/30s/1min/3min/5min/10min/30min
Daylight Sensor Threshold MH18 remote setting: 5lux/15lux/30lux/50lux/100lux/150lux/Disable
Radius Detection Range Tangential moving at 3m height: 4-5m @25℃ (radial moving detection range shorter)
Remote Control Available
Mounting Height 2.5-4m (typical: 3m)
Application Environment
Drill Hole Φ35mm
Working Temperature -25℃ to +50℃ (detection range varies with temperature)
Storage Temperature -40℃ to +80℃
Warranty 3 years (for product quality issues in indoor applications)
Wire Standard Wire diameter: 0.2-2.5mm, Stripping length: 7-8mm
Certificate Standard
Certificate Compliant with CE
Environmental Requirements Compliant with RoHS
IP Rating IP20
Note: "N/A" means not available.
Product Dimensions
35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode 0
Wiring Diagram
35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode 1 35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode 2
Detection Radiation Pattern
35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode 3
Detection Signal Information

The product detects human moving signals:

Moving signal: Detects significant human movement (walking) within the detection area.

Remote Control Options
35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode 4 35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode 5
Installation Guidelines
  1. Install by professional electrician in power-off state
  2. Maximum 4m height for indoor use only. Install away from hot or temperature-change-fast areas to avoid false triggers
  3. Ensure no large objects within detection area (sensor cannot detect through objects)
  4. Avoid strong-reflect objects, wifi routers, microwave ovens, etc., in front of sensor to prevent false triggers
  5. Detection range based on 25℃ environment temperature - range varies with temperature changes
  6. Detection optimized for tangential movement - radial movement detection range is shorter due to PIR characteristics
Product Disclaimer

Due to product technology complexity and application environment differences, this specification serves as reference only. We reserve the right to modify product specifications without notification and make no legal commitments or guarantees. Users are encouraged to supplement or modify specification contents based on their product experience.
