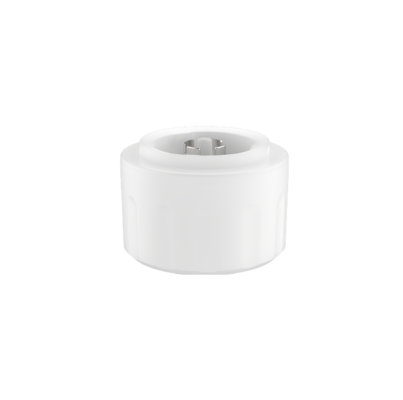

Wireless 2.4G Network Sensor, Daylight Harvesting Function For UFO, 12m Max Mounting Height

  • Wireless 2.4G Network Sensor, Daylight Harvesting Function For UFO, 12m Max Mounting Height
  • Wireless 2.4G Network Sensor, Daylight Harvesting Function For UFO, 12m Max Mounting Height
  • Wireless 2.4G Network Sensor, Daylight Harvesting Function For UFO, 12m Max Mounting Height
Place of Origin Shenzhen, China
Nombre de la marca Merrytek
Certificación CE
Model Number MC079D 99 ZB
Minimum Order Quantity 100PCS
Precio Negociable
Packaging Details Clapboard+box (K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

- ¿ Qué es eso?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Operating Voltage 12±1VDC Operating current 55±5mA
Output signal 0-10V dimming signal Mounting Height 10m (12m Max )
Operating Temperature -35~60℃ Certificate CE
Lifetime 5 years warranty@Ta
Resaltar

wireless motion sensor with daylight harvesting

,

2.4G network sensor for UFO lights

,

wireless sensor with 12m mounting height
Deja un mensaje
Descripción de producto
Wireless 2.4G Network Sensor, Daylight Harvesting Function For UFO, 12m Max Mounting Height
Product Specifications
Attribute Value
Operating Voltage 12±1VDC
Operating current 55±5mA
Output signal 0-10V dimming signal
Mounting Height 10m (12m Max)
Operating Temperature -35~60℃
Certificate CE
Lifetime 5 years warranty@Ta
Product Features
  • 12Vdc Input, suitable for DC systems or LED driver with 12V DC auxiliary power output
  • 0-10V dimming terminal, 3-step or 2-step is optional, detection area adjustable
  • Mini size microwave detection sensor
  • Indoor maximum mounting height is 12m
  • All sensor parameters can be set by remote control
  • Support wireless 2.4G networking
Technical Parameters
Input
Rated Voltage 12±1V DC
Working Current 55±5mA
Ripple Voltage <100mVp-p
Output
Output Signal 0-10V dimming signal
Sensor parameters
Working Frequency 5.8 GHz ±75MHz, ISM wave band
Transmitting Power 3mW Max
Detection Area 25%/50%/75%/100% (Remote control setting)
Hold Time 5s/30s/1min/3min/5min/10min/20min/30min (Remote control setting)
Stand-by Period 0s/10s/1min/3min/5min/10min/30min/+∞ (Remote control setting)
Stand-by DIM Level 10%/20%/30%/50% (Remote control setting)
Daylight Sensor Normal daylight: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable (Remote control setting) (Ambient light diffusion)
Daylight harvesting 100L/200L/300L/400L/500L/600L/Disable (enter daylight harvesting mode；reference to remote manual)
Detection Area(Radius) Ceiling mounting height 12m: r≥4m@0.3m/s, r≥3m@1m/s
Mounting Height 10m (12m Max)
Wireless parameters
Working Frequency 2.4GHz
Transmitting Power 6dBm
Group nodes Max 32 PCS (one group)
Transmitting Distance Point to point transmit 15m Max
Environment
Working Temperature -35~60℃
Storage Temperature -40℃~80℃, humidity≤85% (Non-condensing)
Certification Standards
Certified CE
Environmental requirements Comply with RoHS 2.0, Reach requirement
IP Rating IP65
Other
Wiring Standard Zhaga Book 18 connector
Installation External
Package Clapboard+box (K=A)
Net Weight 39±2g
Lifetime 5 years warranty@Ta
Function Description
RON-OFF function Stand-by Period set "0s"
R2-step dimming Stand-by Period set as "+∞"
R3-step dimming Stand-by Period set as "5min/10min/+∞"
RDaylight harvesting Remote set DH Mode+Daylight Sensor 100L/200L/300L/400L/500L/600L
□Daylight priority N/A
RNetwork function Remote control setting group (Ex: 1~16), set Rx receiving signal
Product Information

Dimension (unit: mm)

Wireless 2.4G Network Sensor, Daylight Harvesting Function For UFO, 12m Max Mounting Height 0

Wiring

Wireless 2.4G Network Sensor, Daylight Harvesting Function For UFO, 12m Max Mounting Height 1

Installation instruction (Zhaga Book 18 can be rotatable installed)

Wireless 2.4G Network Sensor, Daylight Harvesting Function For UFO, 12m Max Mounting Height 2 Wireless 2.4G Network Sensor, Daylight Harvesting Function For UFO, 12m Max Mounting Height 3 Wireless 2.4G Network Sensor, Daylight Harvesting Function For UFO, 12m Max Mounting Height 4
When installing, please note that the microwave antenna plane cannot be blocked by metal.
Detection Range
Wireless 2.4G Network Sensor, Daylight Harvesting Function For UFO, 12m Max Mounting Height 5
Remote Control
Wireless 2.4G Network Sensor, Daylight Harvesting Function For UFO, 12m Max Mounting Height 6 Wireless 2.4G Network Sensor, Daylight Harvesting Function For UFO, 12m Max Mounting Height 7
Initialization

The light will be turned on 100% brightness by the initial energizing sensor, and will be turned off after 10 seconds. During initialization, no external motion sensing signal will be detected.

Default Setting

Sensitivity: 100%, Hold time: 10s, Daylight sensor: Disable, Stand-by period: 5s, Stand-by dim level: 10%

Application Notice
  • Sensor should be installed by a professional electrician. Please turn off power before installing, wiring.
  • Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.. Given detecting area is typical value that was measured by 165cm/65kg testers in an indoor open environment.
  • The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
  • Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.
  • Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering.
  • The installation height of the sensor product cannot exceed 15 meters, and the optimal height is 12 meters. The distance between the two sensors should be greater than 3m.
  • When the sensor is installed in a metal lamp, on a metal reflective surface, or in a small closed environment, the microwave will be reflected multiple times and cause false triggering. Please reduce the sensitivity of the sensor or contact the manufacturer for technical support.
  • Vibration signals will be regarded as moving signals to trigger sensor. Installing sensor should be away from the object that vibrates for a long time, such as large metal equipment, pipes, air conditioning outlets, exhaust vents, smoke exhaust machine ports, shaking fans, etc.
  • Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover above the product.
  • DC regulated power supply with stable output voltage and low ripple coefficient must be used. The ripple of the power supply should be less than 100mV ; the load current should be greater than 65mA.
  • For the new installation environment, it is recommended to first install and test 5pcs prototypes before bulk installation.
