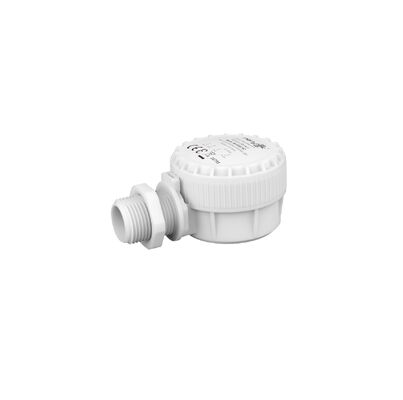

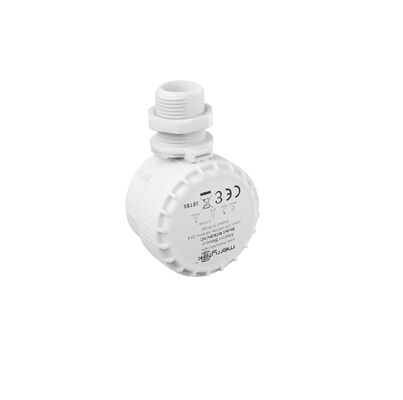

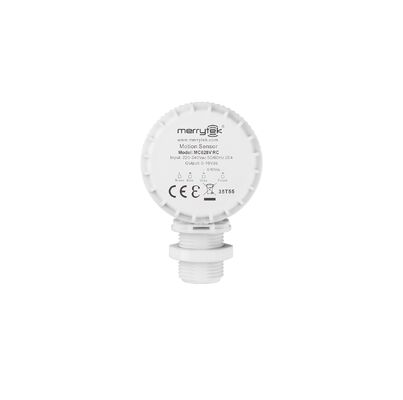

Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation

  • Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation
  • Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation
  • Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation
Lugar de origen Shénzhen, China
Nombre de la marca Merrytek
Certificación CE
Número de modelo MC628VRC
Cantidad de orden mínima 100 piezas
Precio Negociable
Detalles de empaquetado Cajas de papel blanco y cartones
Tiempo de entrega 1, Muestra y pequeño pedido: dentro de 5 días hábiles después de recibir su pago. 2, pedido a granel
Condiciones de pago T/T
Capacidad de la fuente 10000 pcs/mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

- ¿ Qué es eso?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Tensión nominal 120-277 VCA 60 Hz Modo de trabajo 0-10VDimming
Temperatura de funcionamiento -35oC... +55oC Clasificación IP IP65
Instalación Montura lateral M20 Vida 5 años de garantía @Ta 230V a plena carga
Resaltar

warehouse motion sensor side mount

,

microwave motion sensor trip-proof

,

high bay light motion sensor
Deja un mensaje
Descripción de producto
Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light
Side mounting motion sensor designed for linear, trip-proof, and high bay lighting applications in warehouse environments. Maximum installation height of 12 meters.
Key Features
  • Operating voltage: 120~277V AC
  • Maximum mounting height: 12m
  • High-sensitivity and low-sensitivity modes for metal ceiling/reflector environments
  • Compatible with 0-10V dimmable LED drivers for 2-step or 3-step dimming
  • M20 side mount for linear highbay and tri-proof lights
  • Dim+/Dim- function with daylight priority
  • 5-year warranty
Technical Parameters
Input Operating Voltage Range 108-305VAC 60Hz
Output Working Mode 0-10V Dimming
Type of Load LED (0-10V LED driver)
Dim Interface 0-10V Dimming < 50mA (Non-constant source) 10%, 20%, 30%, 50%
Stand-by Power <1W
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz, ISM band
Transmitting Power 0.5mW Max.
Hold Time 5s/30s/1min/3min/5min/10min/20min/30min
Detection Range See detection pattern
Mounting Height 12m Max.
Detection Angle 150° (wall mount), 360° (ceiling mount)
Operating Environment Operating Temperature -35℃ to +55℃
Storage Temperature -40℃ to +80℃ humidity: 10%-95% (non-condensing)
IP Rating IP65
Operating Functions
  • ON/OFF Function (stand-by period set to "0")
  • 2-step dimming function (stand-by period set to "+∞")
  • 3-step dimming function (stand-by period set to "10s/1min/3min/5min/10min/30min")
  • Daylight priority (stand-by period set to +∞)
Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 0
Detection Patterns
Detection area is affected by volume of motion object and motion speed. Testing conducted with 165cm height person walking at 0.5m/s.
Ceiling Mounted Detection
Height: 3m
Sensitivity: 100%/75%/50%/25%		 Height: 6m
Sensitivity: 100%/75%/50%/25%		 Height: 9m
Sensitivity: 100%/75%/50%/25%		 Height: 12m
Sensitivity: 100%/75%/50%
Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 1 Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 2 Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 3 Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 4
Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 5 Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 6 Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 7 Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 8
*Only 100%/75%/50% detection sensitivity is workable when installed at 12m mounting height. 25% sensitivity is not able to detect motion signal.
Wall Mounted Detection
Height: 2m
Sensitivity: 100%/75%/50%/25%
Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 9
Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 10
Application Guidelines
  • Installation must be performed by a qualified electrician with power turned off
  • Plastic and glass lampshades reduce sensitivity (20% reduction per 3mm thickness)
  • Dimming performance varies with different 0-10V drivers
  • Light sensitivity thresholds are measured in sunny environments without shadows
  • For indoor use only - outdoor conditions may cause false triggering
  • Maintain minimum 3m distance between inductive sensors
  • Avoid installation near high-density objects (metal, glass, concrete) to prevent false triggering
  • Test 5 samples before mass application in new lighting projects
Factory Default Settings
  • Detection area: 100%
  • Hold time: 5s
  • Stand-by Period: 0s
  • Stand-by dim level: 10%
  • Daylight Sensor: Disable
