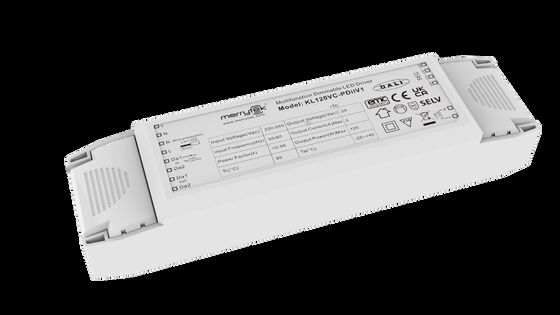

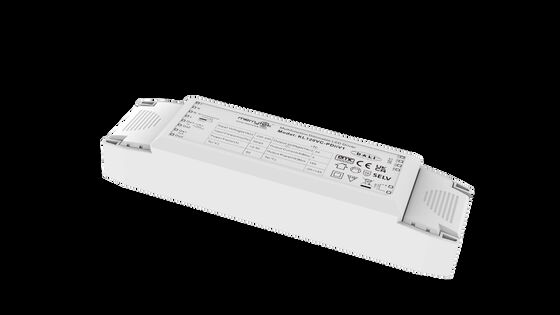

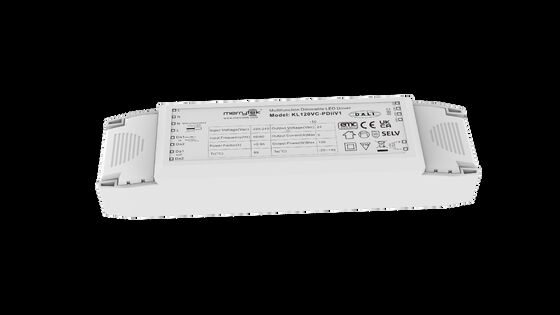

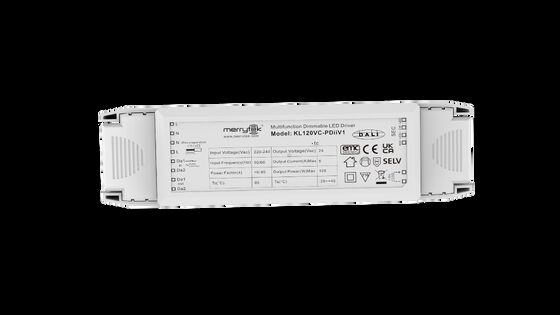

120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty

  • 120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
  • 120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
  • 120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
  • 120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
Lugar de origen Porcelana
Nombre de la marca Merrytek
Certificación CE
Número de modelo KL120VC-PDiiV1
Cantidad de orden mínima 100
Precio Negociable
Detalles de empaquetado Caja blanca + Caja de cartón, 50pcs/CTN
Tiempo de entrega 1, muestra y pedido pequeño: dentro de los 5 días hábiles después de recibir su pago. 2, Orden a gra
Condiciones de pago T/t o paypal
Capacidad de la fuente 10,000pcs por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

- ¿ Qué es eso?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Voltaje de entrada nominal El valor de las emisiones de dióxido de carbono se calculará en función de las emisiones de dióxido Rango de voltaje de entrada de corriente continua El valor de las emisiones de dióxido de carbono es igual o superior a:
Modo de funcionamiento DALI2 DT8 y PUSH y regulación 1-10V Método de control Controlador LED regulable DALI DT8 de 24 V
Factor de potencia ≥ 099 Eficiencia 92%
voltaje constante 24 VCC Dimensión 202x58x30mm
Clasificación IP IP20 Garantía 5 años
Resaltar

24V DALI DT8 dimmable LED driver

,

120W constant voltage LED driver

,

DALI2.0 dimmable driver with warranty
Deja un mensaje
Descripción de producto
120W Constant Voltage 24V DALI DT8 Dimmable LED Driver
High-performance 120W constant voltage driver with advanced dimming capabilities for LED strip lighting applications.
Key Features
  • Flicker-free performance across entire dimming range
  • Stand-by power consumption below 0.5W
  • Primary dimming with push button control
  • Secondary dimming with 0-10V dimmer and potentiometer
  • Built-in DALI interface DT8 compatibility
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Comprehensive protection: short circuit, over temperature, over voltage
  • Current derating for high ambient temperature operation
  • Push dim with memory function
  • 5-year manufacturer warranty
Technical Parameters
Series KL120VC-PDiiV1
Input Specifications
Voltage range 198~264Vac 50Hz /60Hz
Rated supply voltage 220~240Vac 50Hz /60Hz
DC voltage range 200~240Vdc
Input current (@230Vac) 0.6A Max
Inrush Current 30A (Half current pulse width 100US) @230VAC
Power factor ≥ 0.99 (@230Vac,100% load)
Total harmonic distortion Typical: 6% (@230Vac, 100% load)
Stand-by power ≤0.3W
Efficiency(230Vac,100% load) 92%Max
Wiring method Push terminal, wire cross section:0.5-1.5mm²
Output Specifications
Operating mode Constant voltage
Load type LED
Flickering / Flickering-Free Flickering-Free
Start-up time <1s (@230Vac)
Forward voltage 24V
Output current 5A
Max. output voltage (no-load) 30V
Full load output power 120W Max.
Minimum load 12W
Output current/voltage tolerance ±5%
Wiring method Screw terminal, wire cross section:2*0.5-2.5mm²
Dimensions
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty 0
Wiring Diagrams
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty 1
DALI Dimming
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty 2
Push Dimming
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty 3
Operation Instructions
  • ON/OFF: Short-press the PUSH switch (0.1s-1s) to turn on/off
  • Dimming: Press and hold (1s-8s) to adjust brightness (2-100%)
  • Color temperature adjustment: Turn off lights, then press and hold to adjust color temperature
  • Memory function: Remembers the last dimming setting
  • DALI dimming: Connect to DALI system for 0-100% dimming control
Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.
