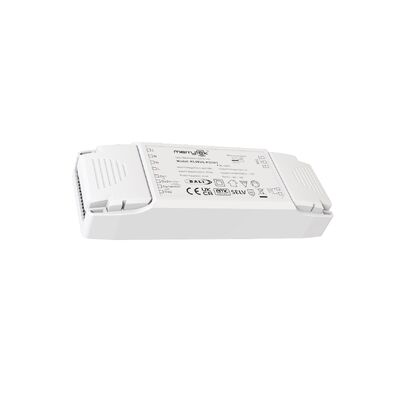

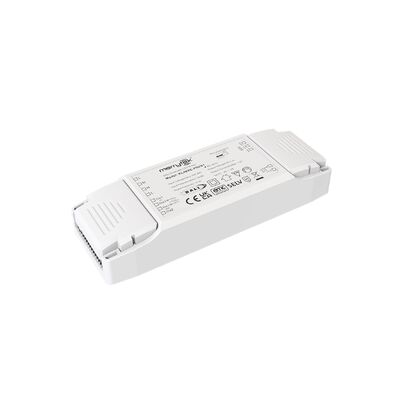

40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty

  • 40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty
  • 40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty
Lugar de origen Porcelana
Nombre de la marca Merrytek
Certificación CE
Número de modelo Se aplicará el procedimiento siguiente:
Cantidad de orden mínima 100
Precio Negociable
Detalles de empaquetado Caja blanca + Caja de cartón, 50pcs/CTN
Tiempo de entrega 1, muestra y pedido pequeño: dentro de los 5 días hábiles después de recibir su pago. 2, Orden a gra
Condiciones de pago T/t o paypal
Capacidad de la fuente 10,000pcs por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

- ¿ Qué es eso?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Voltaje de entrada nominal El valor de las emisiones de dióxido de carbono se calculará en función de las emisiones de dióxido Rango de voltaje de entrada de corriente continua El valor de las emisiones de dióxido de carbono es igual o superior a:
Modo de funcionamiento Controlador LED regulable de 24 voltios. Método de control DALI2, EMPUJE, 0-10Vcc
Factor de potencia ≥0.95 Eficiencia 89%
Voltaje constante 24 VCC Dimensión 150x52x28mm
Clasificación IP IP20 Garantía 5 años
Resaltar

40W DALI DT8 dimmable LED driver

,

24V dimmable LED strip driver

,

DALI2.0 LED driver with warranty
Deja un mensaje
Descripción de producto
40W 24 Volt Dimmable LED Driver DALI DT8 LED Strip Dimmable Driver with 5-Year Warranty

High-performance 40W LED driver with multiple dimming options and robust protection features.

Key Features
  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with a push button
  • Secondary dimming with a 0-10V dimmer and a potentiometer
  • Built-in DALI interface DT8
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Protection: short circuit / over temperature/ over voltage
  • Derating the current for high ambient temperature
  • Push dim with memory function
  • 5-year warranty
Technical Parameters
Series Name KL40VC-PDiiV1
Input
Voltage range 198~264Vac 50Hz /60Hz
Rated supply voltage 220~240Vac 50Hz /60Hz
DC voltage range 200~240Vdc
Input current 0.21A Max.@230Vac
Inrush Current 15A (Half current pulse width 100US) @230VAC
Power factor ＞ 0.95 (@230Vac,100% load)
Total harmonic distortion Typical: 16% (@230Vac, 100% load)
Stand-by power ≤0.5W
Efficiency(@230Vac,100% load) 89%Max
Wiring method Push terminal, wire cross section:0.5-1.5mm2
Loop-in&Loop-out quantity 30PCS(@230Vac)
Output
Operating mode Constant voltage
Load type LED
Flickering / Flickering-Free Flickering-Free
Start-up time <1s (@230Vac)
Load output voltage range 24V CV
Load output current 1.67A Max.
Full load output power 40W Max.
Minimum load 3W
Output current/voltage tolerance ±5%
Wiring method Push terminal, wire cross section:2*0.5-2.0mm2
Control Method
Primary PUSH Dimming Primary PUSH dimming (Max. lead wire length:20m)
1-10V(0-10V)Dimming 0-10V dimming(Port current＜1mA), (Max. lead wire length:20m)
Dimming Range 0%-100%
Secondary PWM dimming 0-10V port PWM dimming (3KHz-8KHz)
Potentiometer Yes, 100kΩ
DALI function DALI dimming (Max. lead wire length:300m)
Exception Protection Requirements
Output over temperature protection Yes, reset the power to recover
Output short circuit protection Yes, reset power to recover
Operating Environment
Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%-95%
Max. case temp(Tc) 85℃
Safety & EMC
EMC standard EN55015, EN61547, EN61000-3-2, EN61000-3-3
DALI standard IEC62386-101 / 102 / 207 DT6 / 209 DT8
Safety standard EN61347-1, EN61347-2-13
Certification CE
Withstand voltage 3750Vac, 5mA, 60s (Input "L N"- Output "SEC")
Others
IP Rating IP20
Type of protection Class II
Installation type Independent installation
Installation dimension 150*52*28mm
Memory function Yes, (PUSH with memory function)
PUSH dimming synchronization Parallel: 15 units Max. Series: 25 units Max.
Packaging requirements Instruction+clapboard+outer carton(K=A)
Weight 300g
Life 5 years @Ta 100% load
Note: All parameters are tested at the input voltage of 230VAC and 25-degree environment unless specified.
Dimensions
40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 0
Wiring Diagrams
40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 1
DALI Dimming
40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 2
Push Dimming
40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 3
Derating
40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 4
Dimming Curve
40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 5 40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 6
Operation Instructions
  • A. Short-press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.
  • B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening, or dimming, the dimming range is 2-100%.
  • C. Color temperature adj: Step 1, PUSH turns off the lights; Step 2, press and hold PUSH to adjust the color temperature starting from the current brightness; Release PUSH, press and hold PUSH again, and adjust the color temperature in the opposite direction; No operation for 5 seconds, exit color adjustment mode.
  • D. Memory: PUSH dimming has a dimming memory function.
  • E. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S
  • F. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
  • G. Constant voltage dimming drivers cannot be used in lamps with constant current circuits.
Note: All parameters are tested at an input voltage of 230VAC and a temperature of 25°C, unless otherwise specified.
