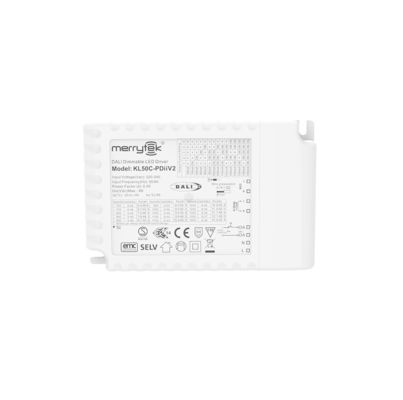

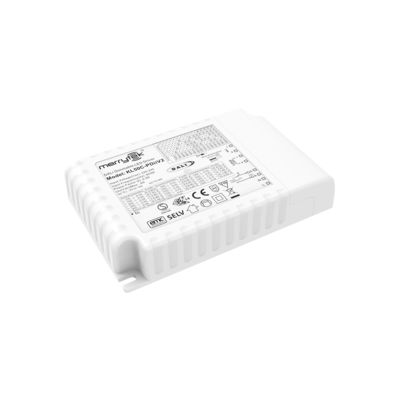

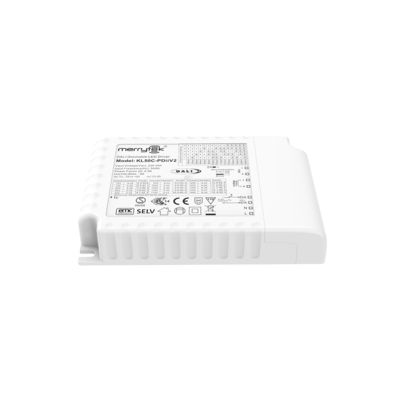

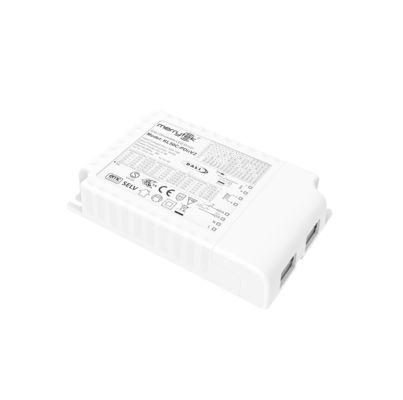

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel

  • 50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel
  • 50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel
  • 50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel
  • 50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel
Lugar de origen Porcelana
Nombre de la marca Merrytek
Certificación CE
Número de modelo KL50C-PDiiV2
Cantidad de orden mínima 100
Precio Negociable
Detalles de empaquetado Caja blanca + Caja de cartón, 50pcs/CTN
Tiempo de entrega 1, muestra y pedido pequeño: dentro de los 5 días hábiles después de recibir su pago. 2, Orden a gra
Condiciones de pago T/t o paypal
Capacidad de la fuente 10,000pcs por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

- ¿ Qué es eso?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Voltaje de entrada nominal El valor de las emisiones de dióxido de carbono se calculará en función de las emisiones de dióxido Rango de voltaje de entrada de corriente continua El valor de las emisiones de dióxido de carbono es igual o superior a:
Modo de funcionamiento Constant Current Método de control Controlador de potencia LED regulable DALI2, PUSH y 0-10 V
Factor de potencia ≥0.95 Eficiencia el 86%
Actual 700-1400 mA Dimensión 123x79x24mm
Clasificación IP IP20 Garantía 5 años
Deja un mensaje
Descripción de producto

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel



1. Description

-Flicker-free for the whole dimming range

-Primary dimming with push button

-Secondary dimming with 1-10V dimmer and potentiometer

-Stand-by power below 0.5W

-Built-in DALI interface DT6

-Supports 10V PWM dimming (3KHz-8KHz)

-Protection: short circuit / over temperature/ over voltage

-Derating the current for high ambient temperature

-5-year warranty



2. Parameters

Input Operating Voltage 198-264VAC 50Hz /60Hz
Rated Input Voltage 220-240VAC 50Hz /60Hz
DC Input Voltage range 200-240VDC
Input Cuttent 0.28A Max.
Input Inrush Current <15A (Half current pulse width 100US) @230VAC
Power Factor ≥0.95 @230VAC (Full load)
Total harmonic distortion Typical: 13% (@230Vac, 100% load)
Stand-by Power ≤0.5W(@230Vac when PUSH or DALIturn off)
Efficiency 86%Max. @230VAC (Full load)
Wiring Method Push terminal, wire cross section:0.75-1.5mm2

Automatic circuit breaker

(Calculate current in the wire)

 type B10 B13 B16 B20 B25 /
Number 20 25 30 40 50 /
type C10 C13 C16 C20 C25 C32
Number 28 40 45 55 70 90
Output Operating mode Constant Current
Load type LED
Flickering / Flickering-Free Flicker value: less than 2% for the whole dimming range
Start-up time <1s (@230Vac)
No-load output voltage 68VDC Max.
Load output voltage range 9-58VDC
Full load output power 50W Max.
Load output current 700~1400mA : For details<Current gear setting>
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method

Push terminal, wire cross section:0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
1-10V Dimming 1-10V dimming(Port current＜1MA)
(Max.lead length:20M)
Dimming Range Primary PUSH & DALI dimming: 0%-100%
1-10V dimming:2%-100%
Primary PWM Dimming 1-10V port PWM dimming (3KHZ-8KHZ)
Potentiometer Yes, 100kΩ
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Output over temperature
protection		 Yes, without a self-recovery function(Can be inquired)
Output short circuit protection Yes, without a self-recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102 IEC62386-207 DT6
Safety standard EN61347-1 EN61347-2-13
Certification ENEC SEMKO CB CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
Installation dimension 123*79*24mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization

Parallel: 15 units Max.

Series: 25 units Max.
Packaging requirement white box+ Instructions Clapboard Outer Carton(K=A)
Weight 210g
Life 5 years guarantee @Ta full load
Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.



3. Dimension (Unit: mm)

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 050W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 1

4. Wiring Diagram

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 2

Fig. A DALI Dimming

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 350W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 4

Fig.B Push Dimming

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 5

Fig. C 1-10V Dimming



5. Derating

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 6

6. Dimming curve

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 7

7. Current gear setting

Current(mA) DIP Pomax(W) Uout(V)
1 2 3 4 5
700 - - - - - 40.6 9～ 58
750 ON - - - - 43.5 9～ 58
800 - ON - - - 46.4 9～ 58
850 - - ON - - 49.3 9～ 58
900 - - - ON - 52.2 9～ 58
950 - ON ON - - 50.4 9～ 53
1000 ON ON ON - - 50.0 9～ 50
1050 ON ON - ON - 50.4 9～ 48
1100 ON - ON ON - 49.5 9～ 45
1150 - ON ON ON - 49.5 9～ 43
1200 - ON - ON ON 50.4 9～ 42
1250 ON ON - ON ON 50.0 9～ 40
1300 ON - ON ON ON 49.4 9～ 38
1350 - ON ON ON ON 50.0 9～ 37
1400 ON ON ON ON ON 50.4 9～ 36



8. ON/OFF & Description of Dimming Operation

A. Short-press the PUSH switch (short-press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening, or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has a dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15 seconds.

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



9. Matters needing Attention

1) The LED string must be connected to the load before turning on the input power; otherwise, the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
