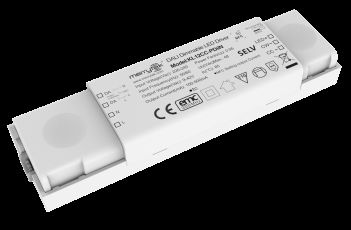

12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver

  • 12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver
Lugar de origen PORCELANA
Nombre de la marca Merrytek
Certificación CE
Número de modelo Kl12cc-pdiin
Cantidad de orden mínima 100
Precio Negociable
Detalles de empaquetado Caja blanca + Caja de cartón, 50pcs/CTN
Tiempo de entrega 1, muestra y pedido pequeño: dentro de los 5 días hábiles después de recibir su pago. 2, Orden a gra
Condiciones de pago T/t o paypal
Capacidad de la fuente 10,000pcs por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

- ¿ Qué es eso?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Voltaje de entrada nominal El valor de las emisiones de dióxido de carbono se calculará en función de las emisiones de dióxido Rango de voltaje de entrada de corriente continua El valor de las emisiones de dióxido de carbono es igual o superior a:
Modo de funcionamiento Controlador LED programable de 12W NFC Método de control Disminución DALI2 y PUSH
Factor de potencia ≥ 0,9C Eficiencia 82%
Actual 100-500 mA Dimensión 130x35x21 mm
Calificación IP IP20 Garantía 5 años
Resaltar

12W DALI DT8 LED driver

,

Dimmable LED driver 100ma to 500ma

,

NFC programmable DALI2.0 driver
Deja un mensaje
Descripción de producto
12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver
Product Description

High-performance 12W DALI DT8 dimmable LED driver with NFC programming capability, designed for professional lighting applications.

Key Features
  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • NFC technology for wireless programming
  • Built-in DALI interface DT8
  • CLO compensation
  • Centrally-supplied DC emergency operation DT19
  • Primary dimming with push button; with memory function
  • Protection: short circuit / over temperature/ over voltage
  • Derating the current for high ambient temperature
  • Quick wiring, convenient, and time-saving
  • 5-year warranty
Technical Parameters
Input Specifications
Operating Voltage 198-264Vac 50Hz/60Hz
Rated Input Voltage 220-240Vac 50Hz/60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.13A Max.
Input Inrush Current <15A (Half current pulse width100μs) @230Vac
Power factor(@230V100% load) ≥ 0.9C
Total harmonic distortion Typical:15% (@230Vac, 100% load)
Stand-by power ≤0.5W (@230Vac when DALI turns off)
Efficiency(@230Vac,100% load) 82%
Wiring Method 0.75-1.5mm²
Output Specifications
Operating mode Constant Current
Load type LED
Ripple requirement Flicker value: less than 5% for the whole dimming range
Start-up time <1s (@230Vac); <0.5s (@200Vdc)
No-load output voltage 48V DC Max.
Load output voltage range 9-42V DC
Full load output power 12W
Load output current 100-500mA
Constant current/voltage Precision Constant Current Precision ±5%
Dimensions
12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver 0
Wiring Diagrams
12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver 1
Fig A: DALI Dimming
12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver 2 12W DALI DT8 Dimmable LED Driver 100ma to 500ma NFC programmable led driver 3
Fig B: PUSH Dimming
Current Gear Settings
Current(mA) Pomax(W) Uout(V)
100 4.2 9～42
150 6.3 9～42
200 8.4 9～42
250 10.5 9～42
300 12.0 9～40
350 11.9 9～34
400 12.0 9～30
450 12.2 9～27
500 12.0 9～24

The typical current data sets are for reference when selecting LED fixture models. More current levels can be set by NFC using a mobile APP adjustable in 1mA steps.

Operation Instructions
  • ON/OFF: Short-press the PUSH switch (0.1s-1s) to turn on/off
  • Dimming: Press and hold PUSH switch (1s-8s) for dimming (2-100%)
  • Color temperature adjustment: Turn off lights, then press/hold PUSH to adjust
  • Memory: PUSH dimming has memory function
  • Synchronization: Press/hold PUSH >15s for synchronization
  • DALI dimming: Connect to DALI system for 0-100% dimming
Important Notes
  • Always connect LED string before powering on to prevent damage
  • Output maintains residual voltage for ~3 minutes after power off
  • Ensure driver is powered off before NFC parameter setting
