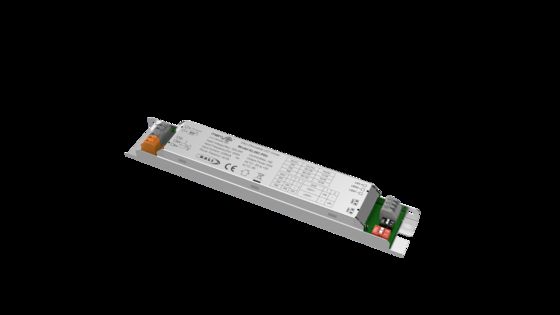

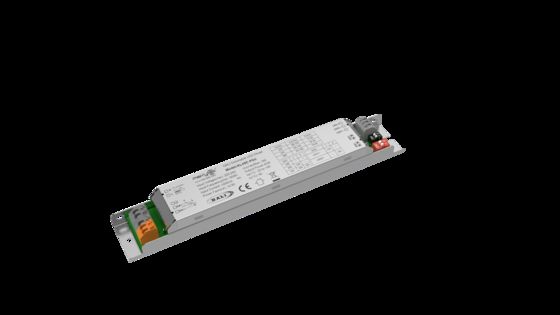

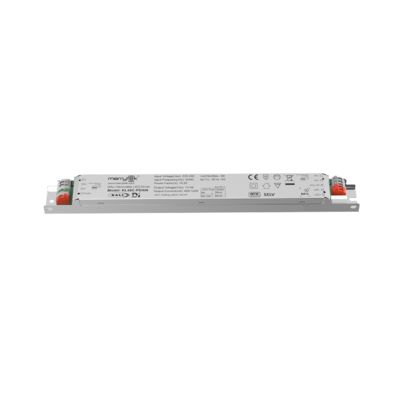

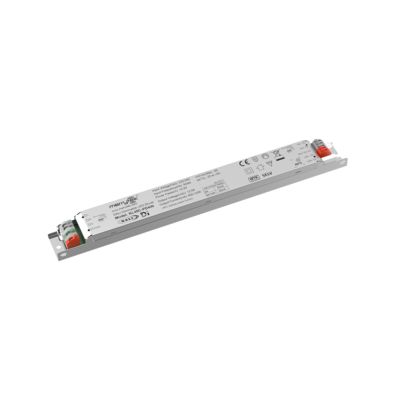

45W NON-SELV DALI2 CCT Linear LED Driver 200mA to 350mA output with 5 years warranty

  • 45W NON-SELV DALI2 CCT Linear LED Driver 200mA to 350mA output with 5 years warranty
  • 45W NON-SELV DALI2 CCT Linear LED Driver 200mA to 350mA output with 5 years warranty
Lugar de origen China.
Nombre de la marca Merrytek
Certificación CE
Número de modelo KL45C-PDII
Cantidad de orden mínima 100
Precio Negociable
Detalles de empaquetado Caja blanca + Caja de cartón, 50pcs/CTN
Tiempo de entrega 1, muestra y pedido pequeño: dentro de los 5 días hábiles después de recibir su pago. 2, Orden a gra
Condiciones de pago T/t o paypal
Capacidad de la fuente 10,000pcs por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

- ¿ Qué es eso?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Voltaje de entrada nominal El valor de las emisiones de dióxido de carbono se calculará en función de las emisiones de dióxido Rango de voltaje de entrada de corriente continua El valor de las emisiones de dióxido de carbono es igual o superior a:
Modo de funcionamiento Controlador LED lineal de 45W Método de control Disminución DALI2 y PUSH
Factor de potencia ≥0.95 Eficiencia 92%
Actual 200-350MA Dimensión 195x30x21 mm
Calificación IP IP20 Garantía 5 años
Resaltar

45W NFC LED power driver

,

D4i programmable LED driver

,

DALI2.0 dimmable LED driver
Deja un mensaje
Descripción de producto

45W NON-SELV DALI2 CCT Linear LED Driver 200mA to 350mA output with 5 years warranty



1. Description

-Flicker-free for the whole dimming range

-Built-in DALI interface DT6

-Centrally-supplied DC emergency operation DT19

-Primary dimming with push button; with memory function

-Protection: short circuit / over temperature/ over voltage

-Derating the current for high ambient temperature

-DIP setting CW,WW color temperature output

-5-year warranty



2. Parameters

Input Operating Voltage 198-264VAC 50Hz /60Hz
Rated Input Voltage 220-240VAC 50Hz /60Hz
DC Input Voltage range 200-240VDC
Input Cuttent 0.23A Max.
Input Inrush Current <15A (Half current pulse width 100US) @230VAC
Power Factor ≥0.95 @230VAC (Full load)
Total harmonic distortion Typical: 15% (@230Vac, 100% load)
Stand-by Power ≤0.5W (@230Vac)
Efficiency 92%Max. @230VAC (Full load)
Wiring Method  Push terminal, wire cross section: 0.75-1.5mm2

Automatic circuit breaker

(Calculate current in the wire)

 type B10 B13 B16 B20 B25 /
Number 20 25 30 40 50 /
type C10 C13 C16 C20 C25 C32
Number 30 40 50 60 80 100
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or flicker-free) Flicker value: less than 2% for the whole dimming range
Start-up time <0.7s (@230Vac); <0.5s (@ DC Input)
No-load output voltage 180V DC Max.
Load output voltage range 65-150V DC
Full load output power 45W Max.
Load output current 200~350mA : For details<Current gear setting>
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Push terminal, wire cross section: 0.5-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
Dimming Range Primary PUSH & DALI dimming: 2%-100%
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Output over temperature
protection		 Yes, without a self-recovery function (Can be inquired)
Output short circuit protection Yes, without a self-recovery function (Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102, IEC62386-207 DT6 / 220 DT19 / 251 / 252 / 253
Safety standard EN61347-1 EN61347-2-13
Certification CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class I
Built-in installation 195*30*21mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization

Parallel: 15 units Max.

Series: 25 units Max.
Packaging requirement PE bag+white box+Instructions+Clapboard+Outer Carton(K=A)
Weight 126.8±5g
Life 5 year @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25-degree environment unless specified.

3. Dimension (Unit: mm)

45W NON-SELV DALI2 CCT Linear LED Driver 200mA to 350mA output with 5 years warranty 0



4. Wiring Diagram



45W NON-SELV DALI2 CCT Linear LED Driver 200mA to 350mA output with 5 years warranty 1

                                                Fig A DALI Dimming

45W NON-SELV DALI2 CCT Linear LED Driver 200mA to 350mA output with 5 years warranty 245W NON-SELV DALI2 CCT Linear LED Driver 200mA to 350mA output with 5 years warranty 3

                                                       Fig B PUSH Dimming

5. Derating

45W NON-SELV DALI2 CCT Linear LED Driver 200mA to 350mA output with 5 years warranty 4

6. Dimming curve

45W NON-SELV DALI2 CCT Linear LED Driver 200mA to 350mA output with 5 years warranty 5

7. Current gear setting

Current (mA) SW1 Pomax(W) Uout(V)
1 2
200 - - 30.0 65～ 150
250 ON - 37.5 65～ 150
300 - ON 45.0 65～ 150
350 ON ON 45.2 65～ 129

8. CCT setting



SW2 Output port
1 2
ON - LED1-
- ON LED2-
ON ON LED1- & LED2-





9. ON/OFF & Description of Dimming Operation

A. Short-press the PUSH switch (short-press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening, or dimming, the dimming range is 2-100%.

C. Color temperature adj: Set SW2 DIP switch, selection of three different color temperatures.

D. Memory: PUSH dimming has a dimming memory function.

E. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15 seconds.

F. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



10. matters needing Attention

1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.

3) When the LED light board is an aluminum substrate and access ground wire, an 18kΩ resistor can be connected in parallel with each string of lamp beads to solve the glow phenomenon after powering off.
