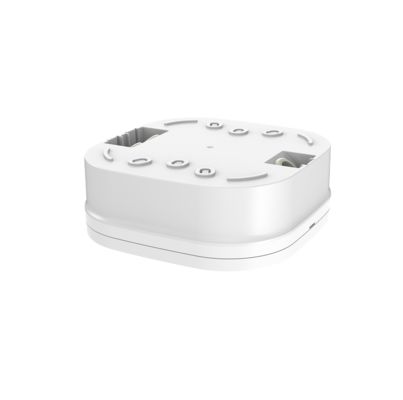

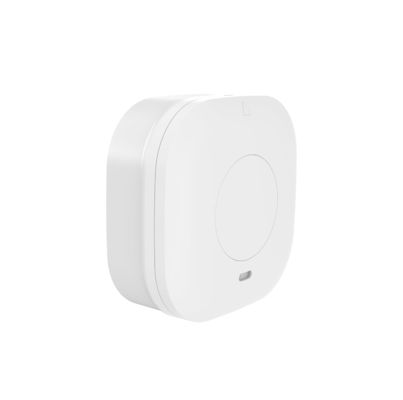

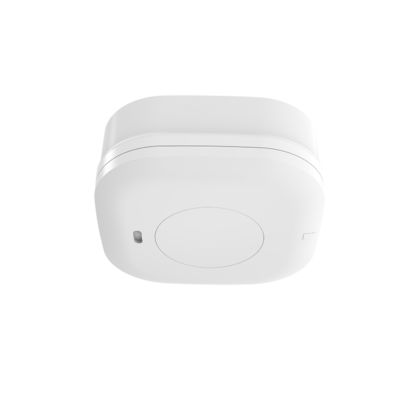

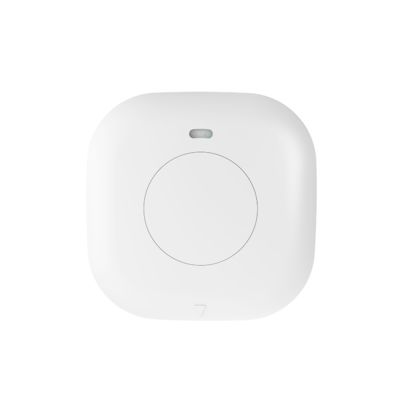

24GHz wireless mesh presence detectors Automatic presence and brightness dependent control for lighting

  • 24GHz wireless mesh presence detectors Automatic presence and brightness dependent control for lighting
  • 24GHz wireless mesh presence detectors Automatic presence and brightness dependent control for lighting
  • 24GHz wireless mesh presence detectors Automatic presence and brightness dependent control for lighting
  • 24GHz wireless mesh presence detectors Automatic presence and brightness dependent control for lighting
Place of Origin Shenzhen, China
Nombre de la marca Merrytek
Certificación CE
Model Number MSA050S 99 Z
Minimum Order Quantity 100PCS
Precio Negociable
Detalles de empaquetado Caja blanca + etiquetas de caja blanca + cartón de cartón
Tiempo de entrega 1, Muestra y pequeño pedido: dentro de 5 días hábiles después de recibir su pago. 2, pedido a granel
Condiciones de pago T/t
Supply Ability 10000 pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

- ¿ Qué es eso?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Working voltage 220-240VAC Working mode Tuya zigbee wireless mesh presence detectors
Mounting height 2.5-4.0m Tiempo de vida 5 años de garantía@Ta 230V a plena carga
Fuerza de trabajo ≤1W Working frequency 24GHz ±24.25GHz
Detecting type Breath detecting, Major motion detecting, minor motion detecting El montaje Instalación en superficie y montaje a chorro
Deja un mensaje
Descripción de producto



24GHz wireless mesh presence detectors Automatic presence and brightness dependent control for lighting

1. Feature
1. Exclusive Merrytek Lifebeing Presence Detection
2. FMCW modulation technology applied to detect micro movement brought by breathing
3. Germany RF technology applied for a 5-year guarantee assurance
4. Accurate Presence/Absence Output
5. Daylight Sensor Available
6. Connect to Tuya Zigbee Ecosystem
7. 24Ghz ISM Band Millimeter Wave Radar technology

2. Parameters

Input/Output Input voltage 220-240V AC
Rated voltage 220V AC
Working current 50mA max
Power consumption ≤1W @220/230V AC
Output signal 1 channel relay ON/OFF, Tuya Zigbee
Max. Surge Capacity 50A (50% Ipeak, twidth =200us, 230Vac full load, cold start)
Sensor parameter Function 24Gh mmW radar presence sensor+daylight sensor
Detection Area Tuya app: 0.5-4m
Sensor Hold Time Tuya app:3-7200s
Daylight Sensor 0-1200lux
Radius detection range(based on 100% sensitivity and tangential moving) major/minor/micor movement(3m height installation): 3.5±0.5m(based on 41㎡ open area test and might change due to different space)
Sensitivity High/Medium/Low
Remote control Available
Mounting height 2-4m typical value: 3m



3dB beam angle



 100°(Horizontal)
100°(Vertical)
Application environment Drill hole Φ55mm
Working temperature -25℃...+50℃
Storage temperature -40℃~+80℃
Warranty 3 year(available based on product quality)
Certificate Standard Certificate Compliant with CE
Environmental requirements Compliant with RoHS
IP rating IP20(Flush mounting) IP54(Surface mounting)
“N/A” means not available



3. Dimension
 a. Surface mounting

24GHz wireless mesh presence detectors Automatic presence and brightness dependent control for lighting 0

 b. Flush Mounting

24GHz wireless mesh presence detectors Automatic presence and brightness dependent control for lighting 1
4. Wiring
24GHz wireless mesh presence detectors Automatic presence and brightness dependent control for lighting 2

Wiring layout suggestion:

1. LN terminal stands for AC input, L’N’ stands for AC output. Please wire correctly

2. One sensor’s max loading capacity is 800W resistive loading and 400W inductive loading for one single load. If you want to connect more load in one loop, we recommend adding an AC contactor in our output LN terminal to avoid momentary surge overload.


5. Detection
24GHz wireless mesh presence detectors Automatic presence and brightness dependent control for lighting 3



6. Initialization

When powered on, the sensor indicator will turn off after flashing for 10 seconds and will not detect a moving signal during this time. After 10 seconds, you can use our MH10 remote or Casambi app to adjust detection area, hold time, daylight sensor, etc., parameters.





7. Factory Default Setting

Detection Area: 4m Hold Time: 30S Indicator Light: On
