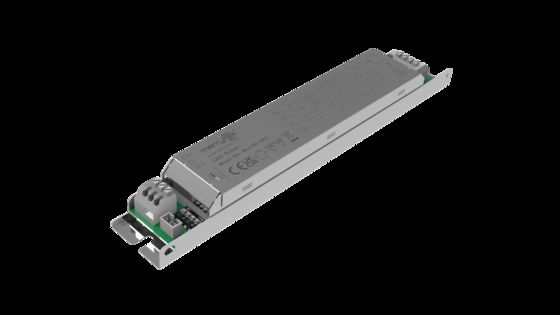

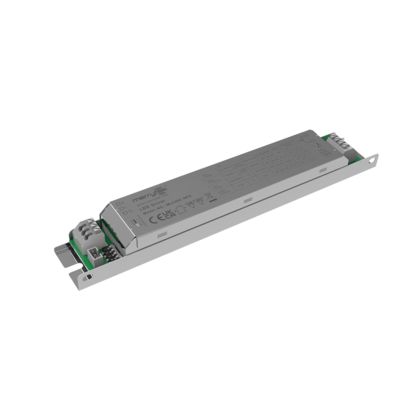

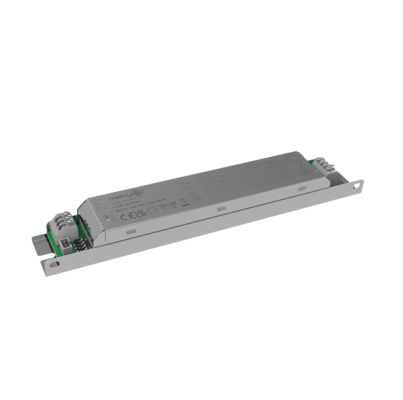

42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified

  • 42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified
  • 42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified
  • 42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified
Lugar de origen Shenzhen, China
Nombre de la marca Merrytek
Certificación CE, SAA
Número de modelo MLC40C-NPS
Cantidad de orden mínima 100pcs
Precio Negociable
Detalles de empaquetado Tablero de bolsas de burbujas, cartón （k = a）
Tiempo de entrega 1, muestra y pedido pequeño: dentro de los 5 días hábiles después de recibir su pago. 2, Orden a gra
Condiciones de pago T/T
Capacidad de la fuente 10000 pcs/mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

- ¿ Qué es eso?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Voltaje nominal 198-264VAC 50Hz/60Hz Energía de espera ≤0.3W
Corriente de aumento <22A (100US medio-corriente) @230VAC Temperatura de funcionamiento -25℃~+50℃
Certificado CE \ SAA Vida Garantía de cinco años (TA = 50 ℃@230VAC Carga completa)
Resaltar

42W LED sensor driver

,

metal strip power supply

,

CE certified dimmable driver
Deja un mensaje
Descripción de producto
42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified
Product Features
  • Metal strip non-isolated power supply; flicker-free PWM dimming power supply; with 12V auxiliary power supply; matching different sensor and wireless smart module.
  • Great performance, high efficiency, high PF value and low stand-by power; conforming to new ERP standard and complying to CE, SAA certification standards.
  • Built-in power supply is suitable for strip lamps; changing parameters by DIP switches.
Parameters
Product No. MLC40C-NPS
Input Voltage Range 198-264Vac 50Hz/60Hz
Input Current 0.19A (@230Vac full load)
Operating Voltage 220-240Vac 50Hz/60Hz
No-load Power ≤0.3W
Stand-by Power ≤0.3W
Power Factor ≥0.95 (@230Vac full load)
Working Efficiency 90% (230V Max load)
THD ≤20%(@230V ac full load)
Leak Current <0.5mA/240V
Surge Current <22A (100us half-current) @230Vac
Output Working model Constant Current
Type of load LED
Start Time ≤1S (@230Vac full load)
Ripple Current ±5% (@230Vac full load, LED full load)
Strobe Frequency Requirement Flicker free (≤5%)
No-load Output Voltage 160Vdc Max
Load Power 42W Max
Load Current 200mA250mA300mA350mA (set by DIP switches)
Load Output Voltage Range 65-120Vdc
Connecting Port PWM Yes (5V and 3.3V PWM signals are compatible)
Port Connecting Method 3PIN PH2.0 row needles terminal
Auxiliary Power Supply Voltage 12V±1V
Current Max100mA
Protection Requirements Operating Temperature/Humidity -25℃~+50℃
Storage Temperature/Humidity -40℃~+80℃ Humidity: 85% (Non-condensing)
Atmospheric Pressure 86~106KPa
Certificate Standards Safety Standards(LVD) EN61347-1,EN61347-2-13
EMC Standards EN55015,EN61547,EN61000-3-2,EN61000-3-3
Lightning Surge LN:1KV
Withstand Voltage 1500V AC 5mA 60S (input "L N" to output SEC+ SEC-)
Environmental requirement Compliant to RoHS
Certificate CE SAA
Output Current Accuracy ±5%
Wiring Press terminal, wire diameter: 0.5-1.0mm2
IP Rating IP20
Protection Class Class II
Installation Built-in
Dimension 195*30*21mm
Net Weight 135g±3g
Warranty Five years warranty (Ta=50℃@230Vac full load)
Product Characteristic Testing
42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified 0
42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified 1
Product Information
  • Dimension (units: mm)
    42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified 2
  • Wiring
    42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified 3
  • Function
    42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified 4
Installation
42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified 5
42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified 6
Dip Switch Setting
I rated (CC) 1 2
350mA ON ON
300mA ON -
250mA - ON
200mA - -
Initialization

After power-on, it is half bright, and after self-test, it enters the 0-10V / PWM port voltage setting brightness (suspended for full bright).

Application Notice

(1) Please use product according to specifications. Failure may occur if the product is used beyond the service conditions.

(2) Connect loads firstly before turning on the input power; otherwise, load may be damaged.

(3) After the LED drive input power is off, the output end still has residual voltage, which can be maintained for about 3 minutes.

(4) This product is a non-isolated power supply:

  • To avoid electric shock, do not operate with power on before connecting load.
  • To avoid damaging sensing head, power off is also required before connecting.
